High Speed Double Pieces Folder Gluer Machine Suitable For Turnover Packaging Boxes

Marchio:	SINO JIGUO
Numero di modello:	AF-2300B
Moq:	1
prezzo:	$22000
Tempo di consegna:	30 giorni di lavoro
Condizioni di pagamento:	L/c, t/t

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Cina

Dimensione massima della carta:

1150*1060mm

Dimensione di Min.paper:

470*260mm

Velocità di Max.working:

3000shipping e trattare

Energia:

11KW

Spessore del foglio:

Bordo di A-E Corrugated, 5 strati

Peso totale:

2000 kg

Imballaggi particolari:

Imballaggio del film

Capacità di alimentazione:

30 set al mese

Evidenziare:

high speed folder gluer machine

double pieces folder gluer

folder gluer for turnover boxes

Descrizione del prodotto

High Speed Double Pieces Folder Gluer Machine Suitable For Turnover Packaging Boxes

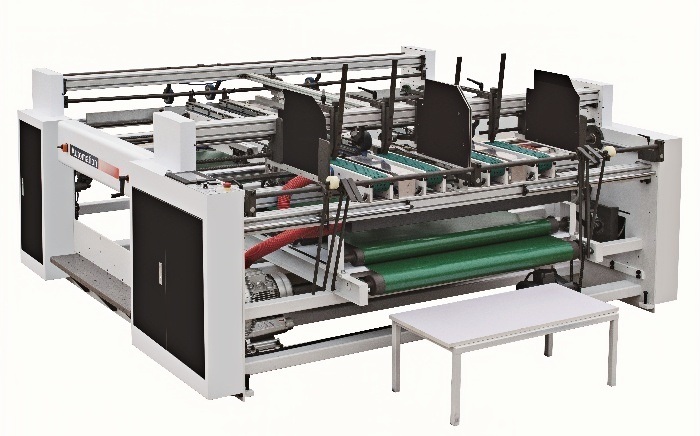

High Speed Double Pieces Folder Gluer Machine

This machine is a double-sheet folder gluer, which is specifically designed for gluing two sheets of cardboard together to form cartons or boxes. It features multiple components like feeding systems, gluing units, and pressing mechanisms to ensure precise and efficient folding and gluing operations.

Specifications

Model	AF-2300B
Max.paper size	1150*1060mm
Min.paper size	470*260mm
Max.working speed	3000s/h
Power	11KW
Sheet thickness	A-E Corrugated board, 5 layer
Total Weight	2000KG
Overall Dimension	300040501460mm

Machine Features

The machine frequency conversion speed regulation, PLC centralized control, can choose two-piece single-chip production mode one-button switching to complete.
The paper is equipped with double suction and double feed independent control. The four-belt automatic paper feeding function avoids the paper from being warped, so that the two paper boxes can be synchronously discharged. It also does not cause the surface of the carton to slip and greatly improve the paper feeding efficiency and stability.
The two-piece carton is spliced and bonded in the middle, and the mechanical roller is used for glue coating, and the two types of bonding methods are divided into cold and hot glue. The cold glue acts as a bonding agent, and the hot glue acts as an instant bonding and setting, and does no shift, and the double bonding fastness is stronger, ensuring 100% adhesion after the product container and the cold storage.

The two piece docking position uses a double servo paper to ensure the consistency of the machine at low speed bonding and high speed bonding accuracy.
This machine can be used as the first position of the flat box, special-shaped box and large and small pieces. The middle paper feeding positioning guide and the upper paper feeding conveying pressure wheel, the upper and lower synchronous shifting to the adjustment machine shortens the adjustment time and solves many problems. The time for the variety to change the order.

FAQ

Q: Can you customize the equipment according to my needs?

A: Yes, the specification, configuration, function and appearance can be customized.

Q: How about quality control and delivery?

A: We have inspection department for every process. Every machine must be debugging before delivery by our experienced engineer to make sure the machine are best condition, The third party inspection are acceptable, our delivery time is 20-30 days normally, details need confirm before place order.

Q: What services can we provide?

A: We offer 12 month warranty, long term technical support. Any time your company need help, Just contact with our sales. We will make the solution as soonest.

Q: Whether offer engineer to client company to installation, train, and guide your production?

A: Yes, We can arrange clients to your company if you need.
