High-Speed Servo Stretch Wrapper | Servo Motor Driven Film Wrapping Machine

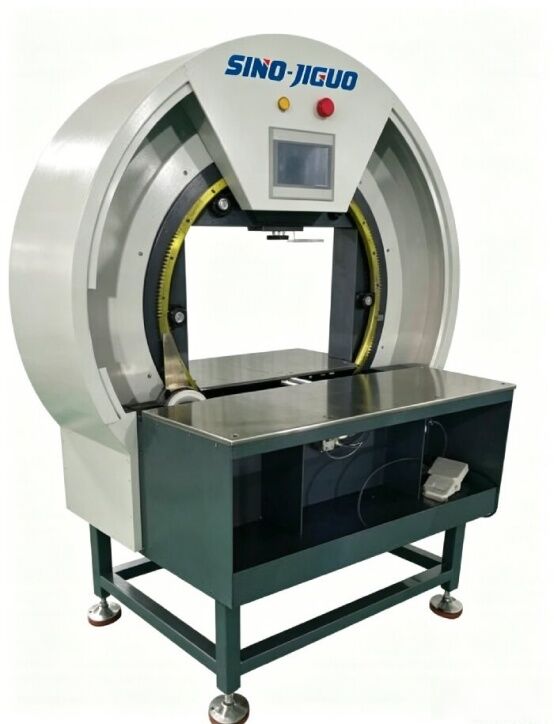

6.1 Annular Rotating Ring (Core Component)

• Location: Large white circular part on the main body.
• Function: This main moving part has built-in gear and transmission system, driving the film unit to rotate 360° at high speed for spiral wrapping. Fitted with high-precision slewing bearing, it runs smoothly and quietly, ensuring efficient and tight wrapping.

6.2 Film Carriage & Unwinding Mechanism

• Location: White film roll spindle inside the rotating ring (bottom left in picture).
• Function: Holds PE stretch film. The integrated tension control and optional pre-stretch system deliver consistent film tension. It ensures tight wrapping while saving film and lowering running costs.

6.3 Stainless Steel Platform & Conveyor

• Location: Central metal platform.
• Function: Supports goods for wrapping. Smooth and durable surface allows easy loading and unloading. Some models can link with assembly lines for automatic continuous work. Photoelectric sensors detect goods and trigger wrapping automatically.

6.4 PLC Touch Panel

• Location: Display on top of the rotating ring.
• Function: Central control center. Adjust wrapping layers, speed, tension and overlap ratio as needed. One-click start and preset parameter groups support quick switching for different products. Easy to learn and operate.

6.5 Control Buttons (Start & Emergency Stop)

• Location: Red emergency stop and green start buttons beside the panel.
• Function: Emergency stop button cuts power immediately for safety; start button launches the wrapping cycle. All parts comply with industrial safety specifications.

6.6 Foot Pedal Switch

• Location: Foot control on machine exterior.
• Function: Hands-free operation. Step down after loading goods to start wrapping, ideal for frequent pick-and-place work.

6.7 Frame & Protective Cover

• Location: Grey steel base structure.
• Function: High-strength welded steel frame keeps the machine stable during high-speed running. Enclosed protection avoids risks from rotating parts and keeps internal components dust-free.
